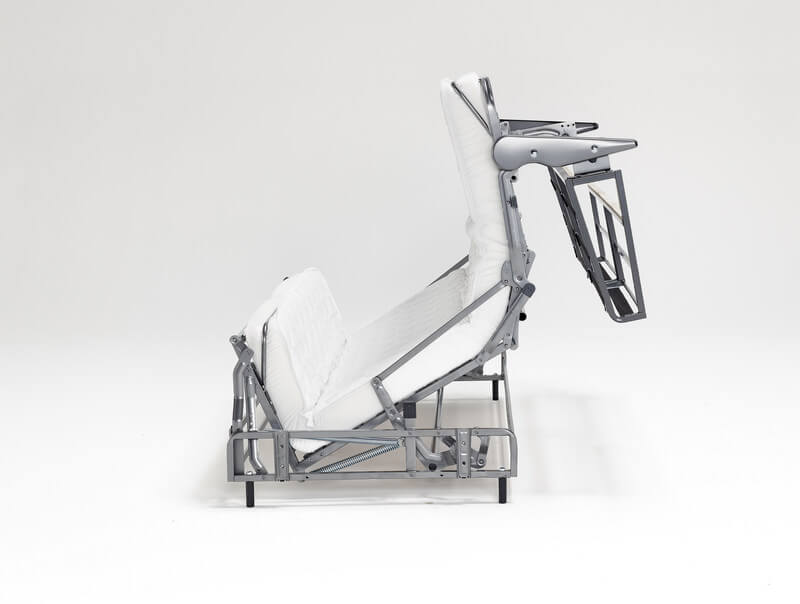

Extra Smart piede 8

Revolving mechanism with 208 cm sleeping surface

null

Tested up to 2500 cycles

null

High Tech System

null

Patented by Altaflex S.r.l.

REVOLVING MECHANISM, H12 MATTRESS

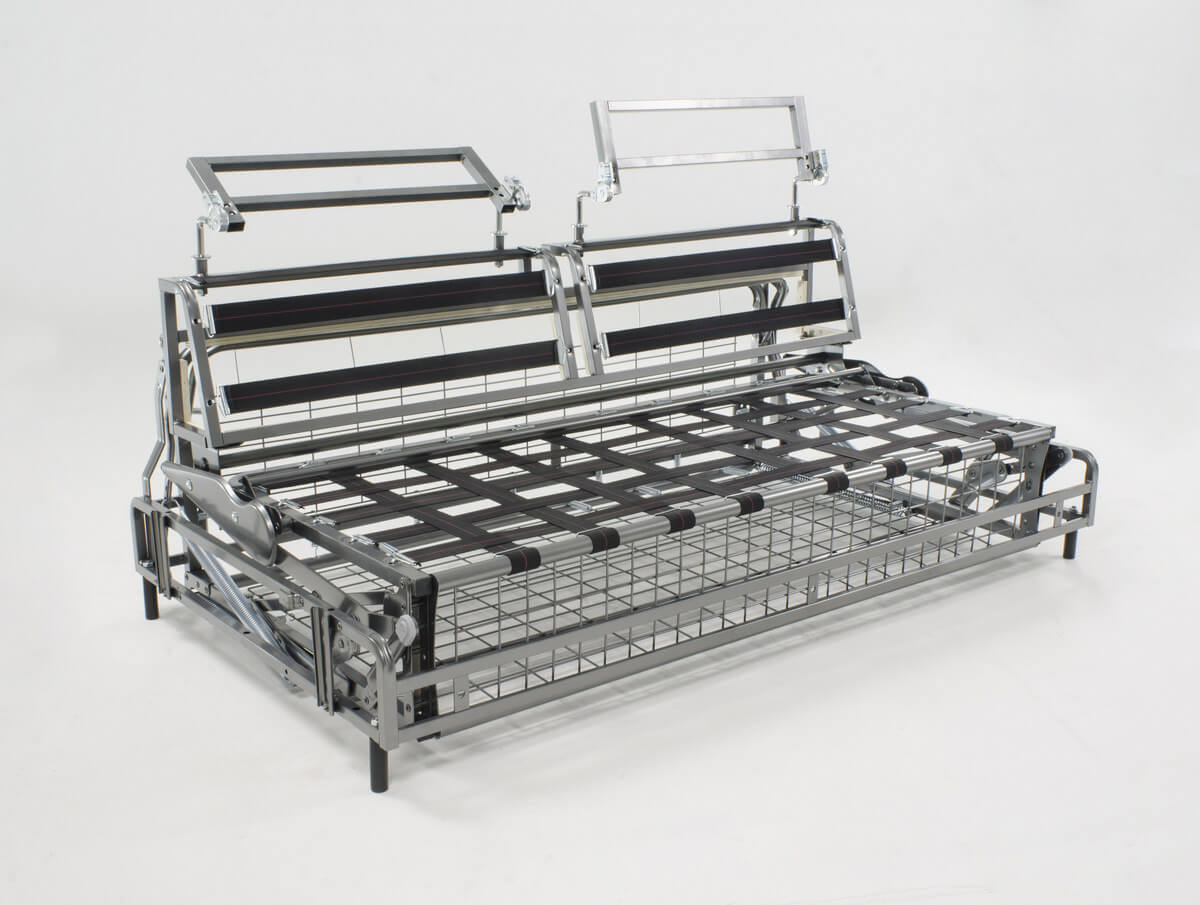

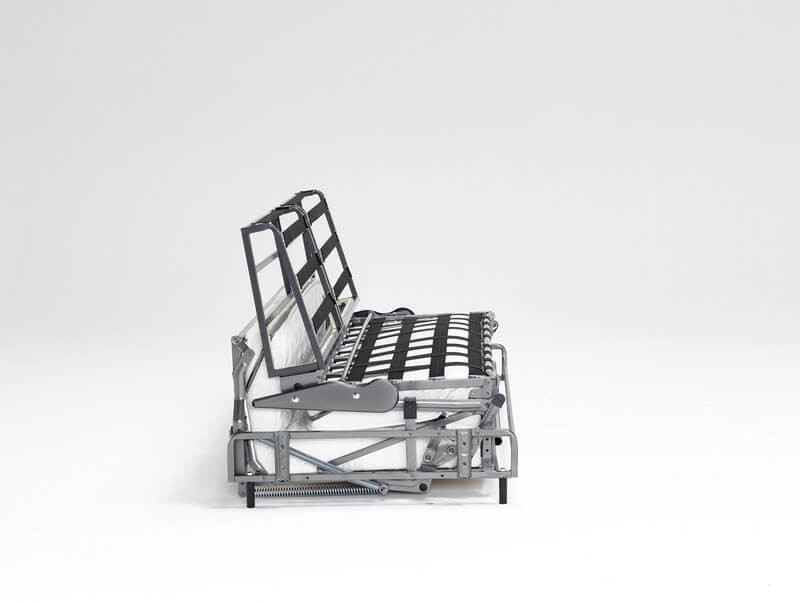

An insertion mechanism with a simple, single opening system that makes it possible to leave the seat and back cushions in place on the sofa. Mec extra-smart leg 8 thanks to its greater depth of the seat and to the reduced front panel, it allows a more comfortable and modern sofa design.

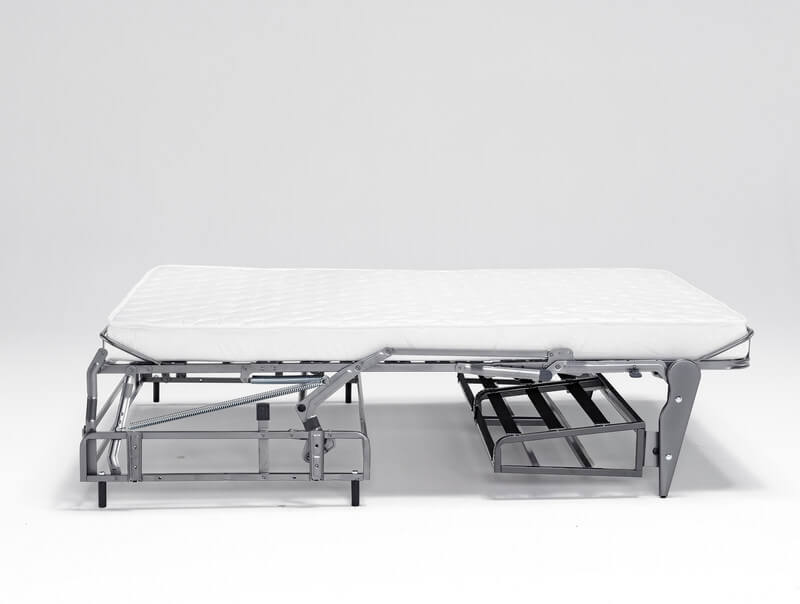

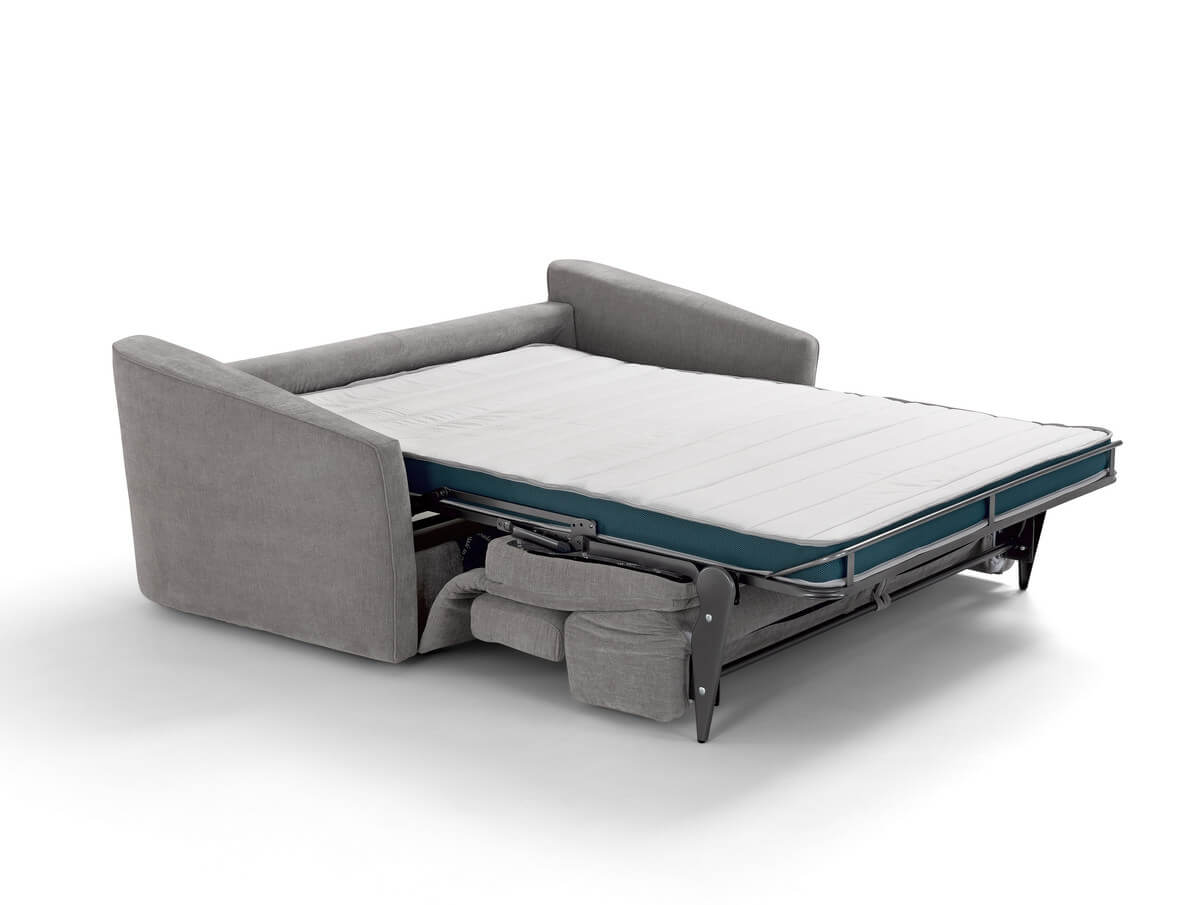

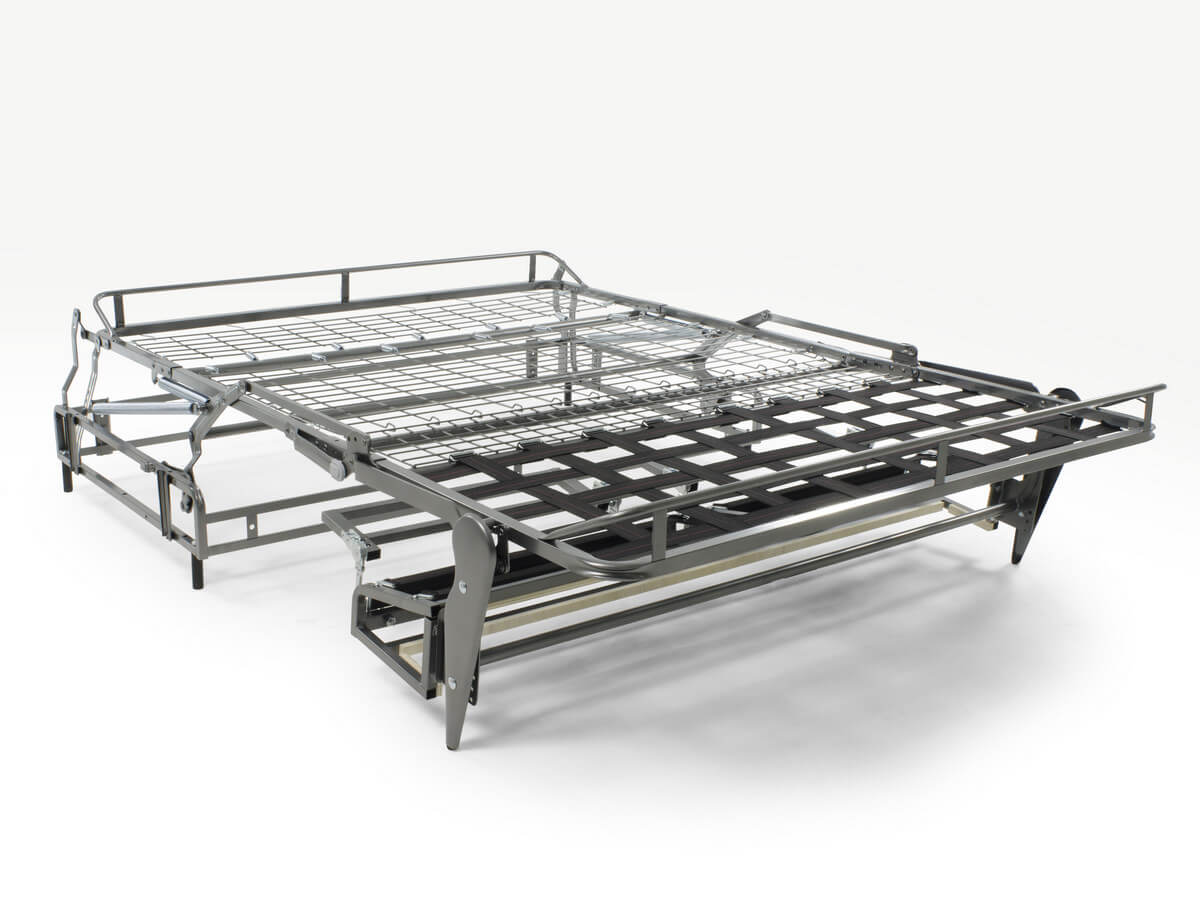

This mechanism also has a sleeping surface with 208 cm long mattress. Ultra-strong frame in furniture tubing painted with epoxy powders. Sleeping surface with base in fuse-bonded steel and elastic straps.

Mechanism equipped with back headrests

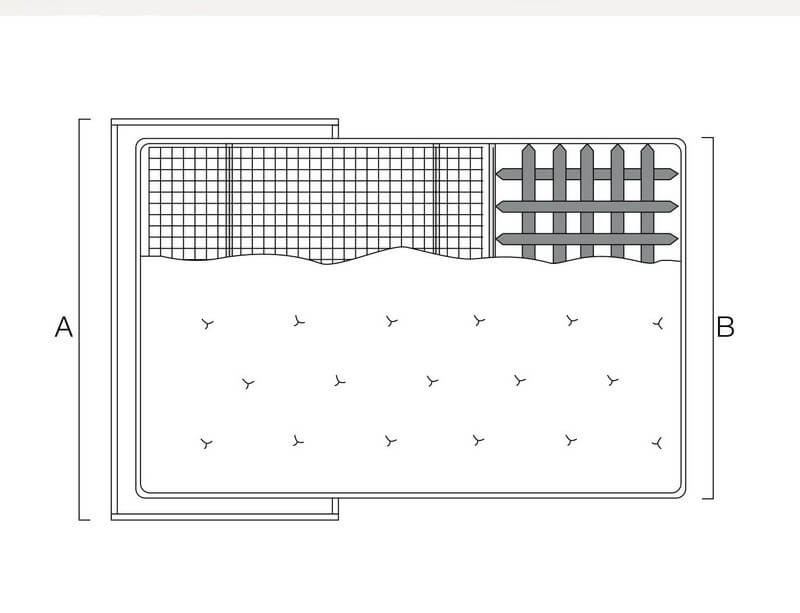

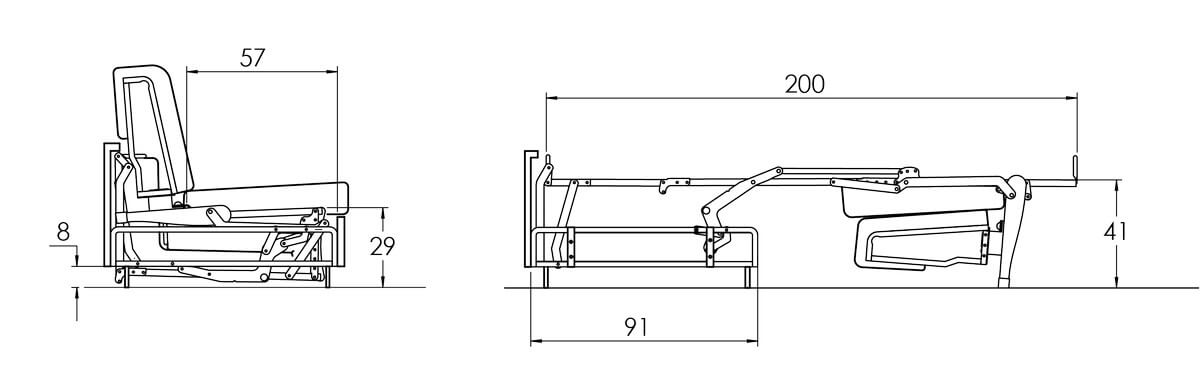

Sleeping surface length 208 cm

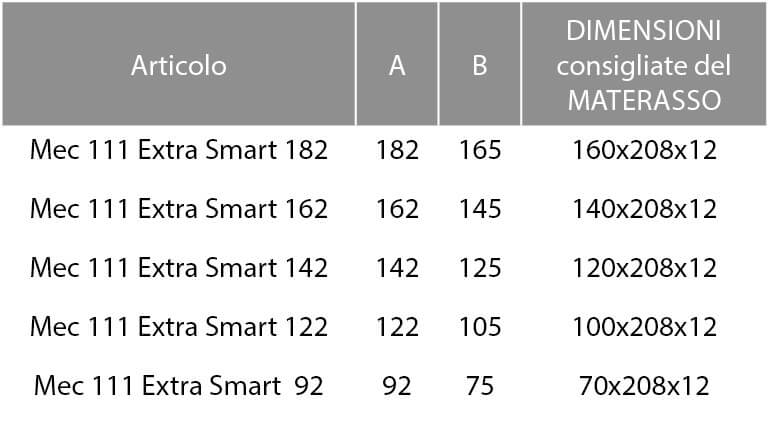

AVAILABLE MATTRESSES FOR EXTRA SMART PIEDE 8

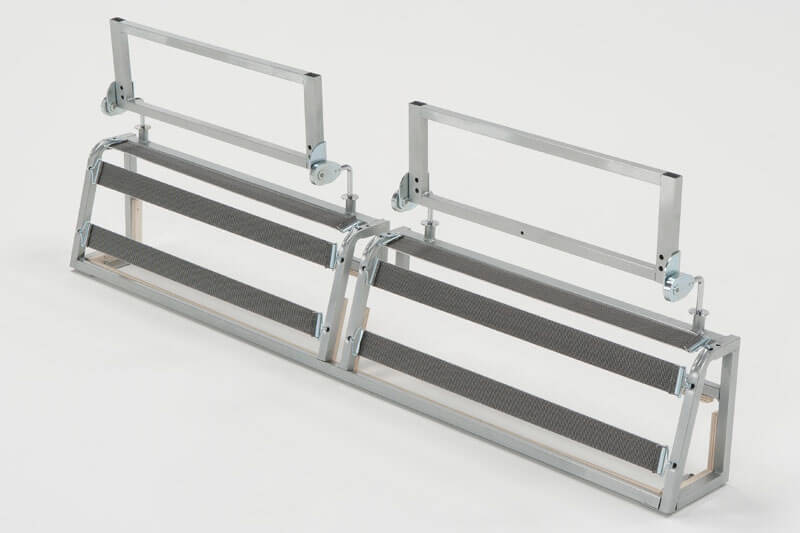

HEADREST BACKREST

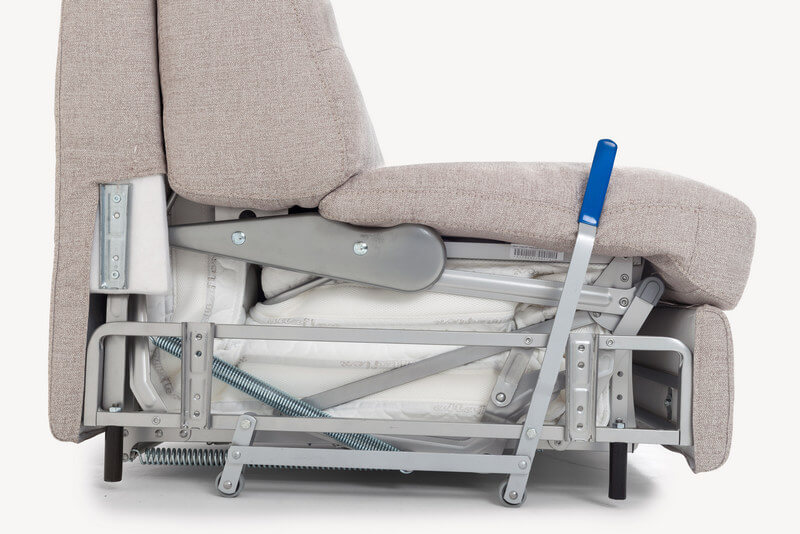

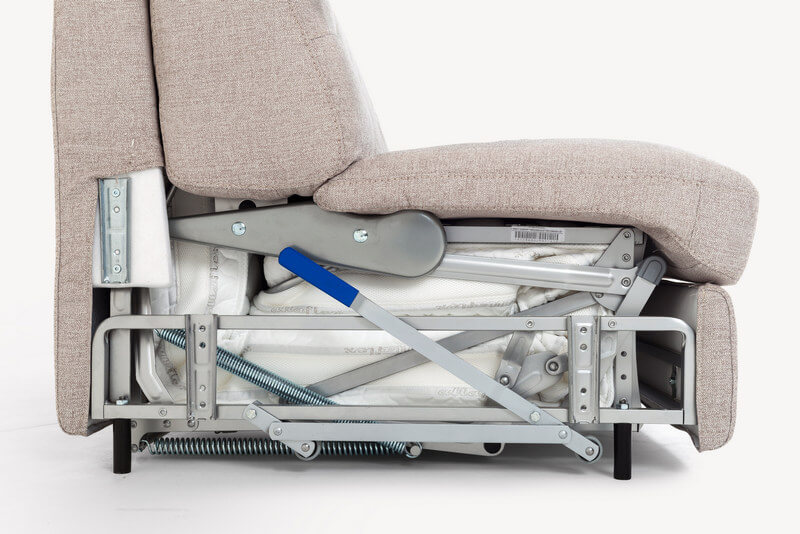

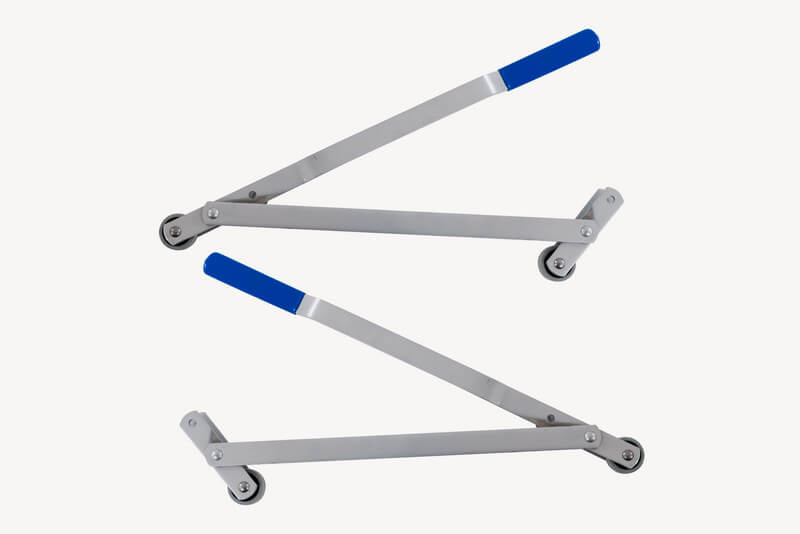

LIFT UP PIEDE 8

ART. 02106/KIT/LIFTUP

FIXING BRACKET WOODEN PILLOWSTORAGE

Art 02106/kit/att/spa/leg

ARMREST FIXING BRACKET

Art 02111/Kit/blobra

SOFA FRONT BRACKET

Art. 02106 STA

BAYONET

Art. 02106 BF

FEET H8 / H13

Art 02100 pie

UNIVERSAL CHAISE LONGUE

Mec 110 Universal chaise longue (122×62,5 cm)

BACKREST
HEADREST BACKREST
LIFT UP
LIFT UP PIEDE 8

ART. 02106/KIT/LIFTUP

BRACKETS
FIXING BRACKET WOODEN PILLOWSTORAGE

Art 02106/kit/att/spa/leg

ARMREST FIXING BRACKET

Art 02111/Kit/blobra

SOFA FRONT BRACKET

Art. 02106 STA

BAYONET
BAYONET

Art. 02106 BF

FEET AND CARTER
FEET H8 / H13

Art 02100 pie

PENINSULA
UNIVERSAL CHAISE LONGUE

Mec 110 Universal chaise longue (122×62,5 cm)
